Project NotMine

October 2017

C with CGI, REST and PostgreSQL

Download
Details
Screenshot
Video

This is a strong advise to run this implementation with the destined user, here called notmine, with its own web directory. It is all very straight-forward and transparent but it also makes critical changes to the web directory.

1. Download

Link		Description
notMineCRest.zip	.	A C with CGI implementation for a frontend that matches the mockup.
PostgreSQL Schema	.	Install database with PostgreSQL schema for NotMine business logic.
libxml2	.	This implementation was developed against libxml2.so.2.9.4.
libxslt	.	This implementation was developed against libxslt.so.1.1.28.

Dependencies

2. Details

The implementation is tested only on Linux.
An Apache server was used. The user web directory was configured to receive GET, POST and PUT requests and use CGI programs.
XML with schema notMine.xsd is applied.
XML with schema notMineSoap.xsd is applied.
XML is transformed with XSLT into HTML.
The client is implemented with AJAX calls.
A session begins with an index page since the implementation is REST-conform and a new game requires a POST request.
Pick up an old game with a query-string like the one in the screenshot.

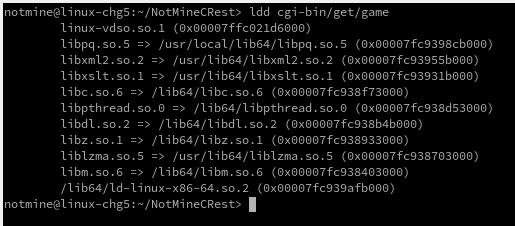

3. Screenshot

4. Video

The game is reloaded for every click.
